Description

Optimax® Cardboard Shredders

• Cardboard Shredders recycle waste cardboard into usable void fill for product protection.
• It reduces the need to purchase bulky protective and void fill items, such as bubble wrap and polystyrene chips, therefore saving valuable space in your warehouse and money.
• Our cardboard shredders turns quantity of cardboard into packaging void fill in a short space of time.
• Our single phase cardboard shredders models available, have the capacity to process cardboard up to 15mm thick, with a feed rate of 12 meters per minute.
• For heavy use, we have our three phase models, which can shred cardboard up to 20mm thick, has a run time of 6-7 hours and will process 16 meters of cardboard per minute.

Optimax® Dust Extraction Units

• Dust Extraction Units for both single phase and three phase Cardboard Shredders are available to reduce and collect airborne dust.

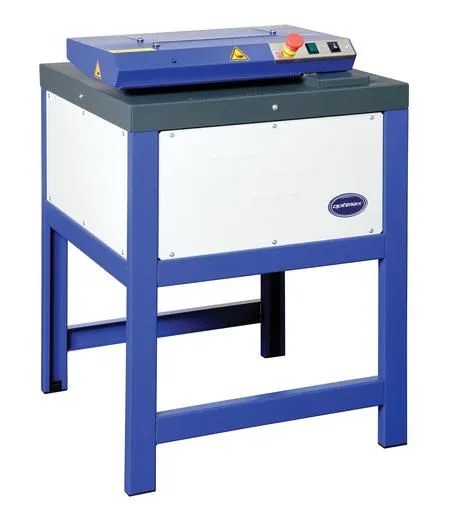

Single Phase – 12mm Cardboard Shredder (OCS320)

• Turn your used cardboard packaging into high-bulk void fill and protective matting
• Reduce costs of disposal and provides free environmentally friendly packing material
• Complies with safety standards BS EN ISO 13857:2008 and IEC/EN 60204-1
• Maximum cutting width 320mm
• Maximum cutting thickness 12mm
• Maximum output 3 cubic metres per hour
• Maximum feed rate 12 metres per minute
• Unlimited run times
• Dust extraction outlet connects to: Optimax® SFP100-1K
• Power supply 230V 50Hz
• Power consumption 0.75kW
• Dimensions (W x D x H) 660 x 660 x 980mm
• Nett weight 110kg
• Shipping weight 130kg

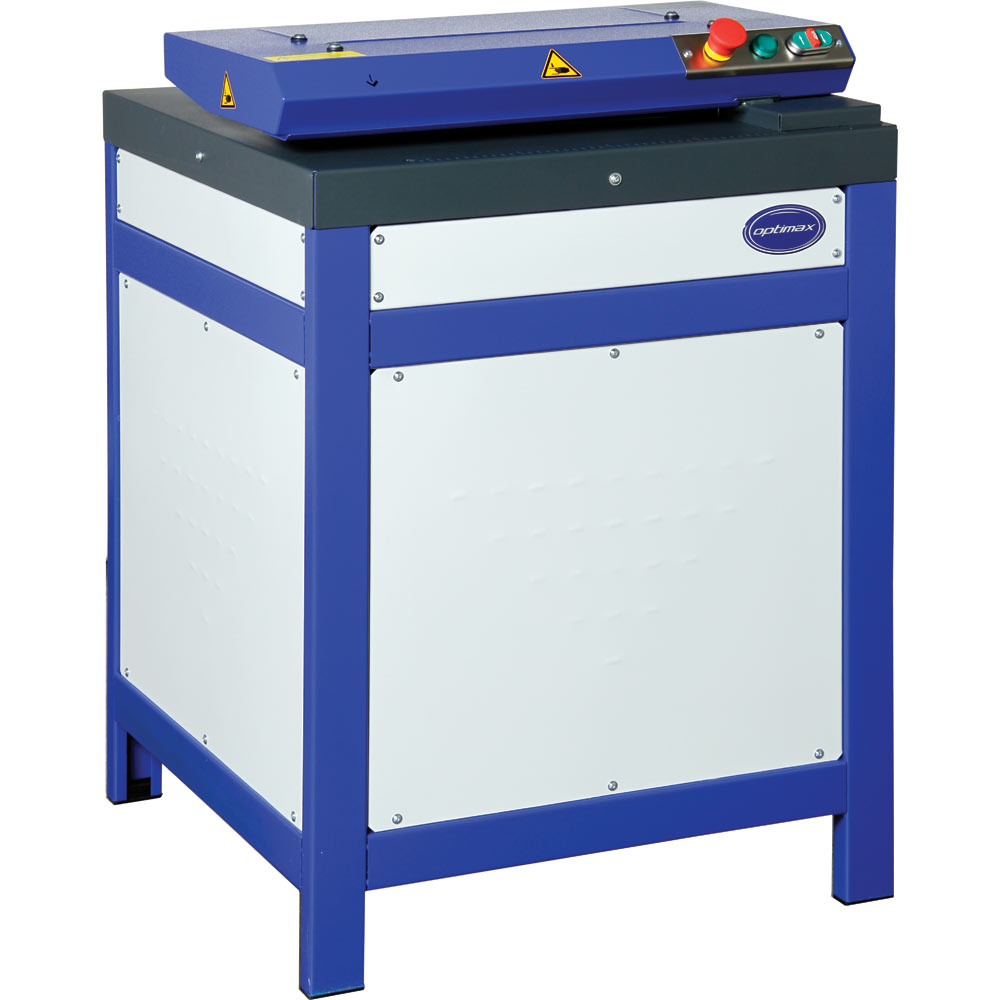

Single Phase – 18mm Cardboard Shredder (OCS422240V)

• Turn your used cardboard packaging into high-bulk void fill and protective matting
• Reduces costs of disposal and provides free environmentally friendly packing material
• Complies with safety standards BS EN ISO 13857:2008 and IEC/EN 60204-1
• Maximum cutting width 420mm
• Maximum cutting thickness 18mm
• Maximum output 4-6 cubic metres per hour
• Maximum feed rate 13 metres per minute
• Unlimited uninterrupted run time
• Dust extraction outlet connects to: Optimax® SFP200-1V
• Power supply 240V 50Hz
• Power consumption 1.5kW
• Dimensions (W x D x H) 660 x 660 x 980mm
• Nett weight 125kg

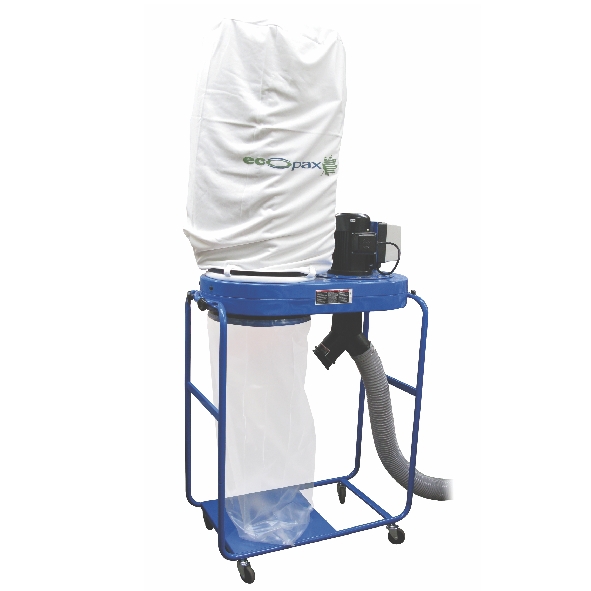

Dust Extractor – 230V (SFP100-1K)

• Ideal for use with all 230V Optimax® shredders having a dust extraction outlet
• Collects and reduces airborne dust and cardboard particles
• Includes 3 metre long flexible connector hose
• Weight 38kg

Dust Extractor – 415V (SFP200-1V)

• Ideal for use with all 400-415V Optimax® shredders having a dust extraction outlet
• Collects and reduces airborne dust and cardboard particles
• Includes 3 metre long flexible connector hose
• Weight 45kg
